M Series / 5G RedCap
M Series · Industrial router

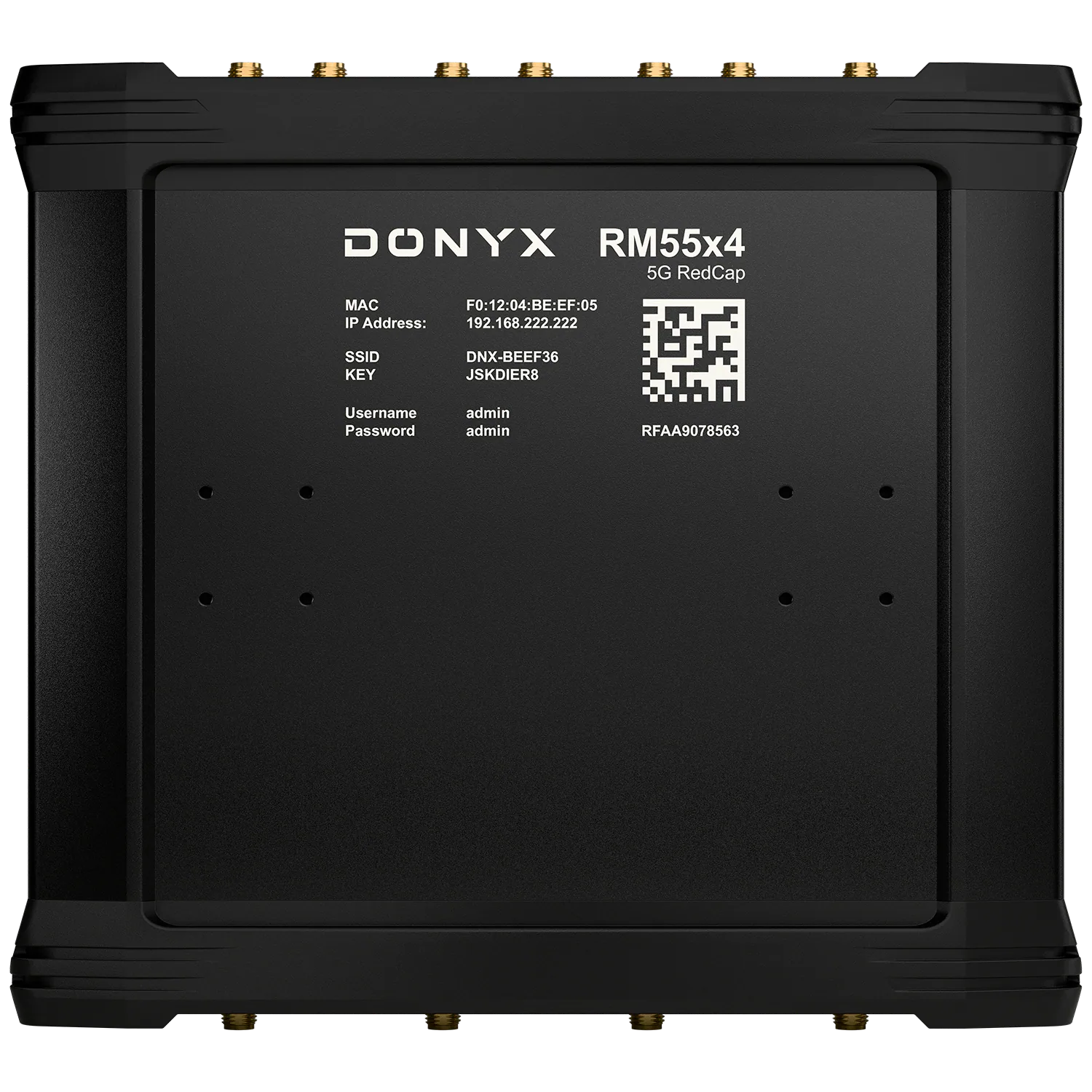

RM55x45G RedCap
RM55x4 is an industrial router with 4 5G RedCap cellular modules, 5 Gigabit Ethernet ports, RS485 for resilient remote connectivity.
- Support for four NR5 (redcap) modules
- 5G, download speed up to 220 Mbps
- Wi-Fi 4, Wi-Fi 5, GNSS
- 5 x LAN 1000 Mbps, rj45 console port, 3 x gpi
Project pricing and lead timeGet a tailored quote for RM55x4
Request a quote →✓
Europe and UK sales
Technical support before and after deployment
Product overview
Reliable connectivity for demanding deployments.
This industrial-grade 5G router features quad-module 5G RedCap, each capable of delivering download speeds of up to 220 Mbps and upload speeds of up to 120 Mbps. This multi-module configuration provides enhanced connection resilience through automatic failover and load balancing, supporting service continuity and reducing downtime.
Integrated redundancy features maintain connection stability. In the event of a primary network failure, the router automatically switches to a secondary cellular connection. Should all cellular connections become unavailable, the router can fail over to Ethernet or Wi-Fi, providing an alternative connection path when configured.
Supporting up to four SIM cards, the router offers redundancy at both the module and carrier levels. Scheduled SIM management and failover capabilities mitigate the impact of physical SIM card failures and optimise network utilisation.
Key features include five Gigabit Ethernet ports and dual-band Wi-Fi, offering fast and reliable connectivity for multiple devices. The router includes discrete GPI inputs for industrial system integration and a hardware-integrated GPS module for precise location tracking, ideal for asset tracking, fleet management, and remote monitoring.
Built for demanding conditions, the router operates within a wide temperature range, from -40°C to +65°C, and is housed in a rugged metal enclosure designed to withstand harsh industrial environments.
Technical data
Specifications
Specifications are based on the current product documentation and may vary by configuration.
Hardware Specifications+
- Cellular Modules
- 4 x NR5 (RedCap)
- Processor
- Quad-core ARM Cortex A7 717MHz
- Dynamic RAM
- 512 MB
- NAND Flash Memory Capacity
- 256 MB
- Wi-Fi
- 2.4 GHz (802.11b/g/n), 5 GHz (802.11ac)
Ports and Connectors+
- Ethernet Connector
- 5x LAN 10/100/1000 Mbps
- SIM Card Slots
- Mini SIM
- Microfit4 Connector
- Power
- Terminal Block
- RS485, 3 x GPI
Physical Specifications+
- Product Dimensions (including connectors)
- 180 × 180 × 50 mm
- Product Weight
- 770 g
- Enclosure Material
- Aluminum
- Enclosure Protection Rating
- IP30
- Operating Temperature Range
- from -40°C to +65°C
Electrical Specifications+
- Power supply voltage
- from 10 to 30 V (DC)
- Current consumption
- Details
- power supply voltage +12 V - 1500 mA;
- Details
- power supply voltage +24 V - 750 mA;
- GPIO Inputs
- Details
- Voltage range for "0" (low level) - 0...0.3 V
- Details
- Voltage range for "1" (high level) - 1.9 V...Vin
- Details
- Maximum allowable input voltage - 30 V
Tunneling+
- OpenVPN
- Ability to run one server and multiple clients simultaneously.
- Encryption
- Client - AES-128-CBC, AES-192-CBC, AES-256-CBC; Server - AES-128-CBC, AES-128-GCM, AES-192-CBC, AES-192-GCM, AES-256-CBC, AES-256-GCM
- IPsec
- IKEv1, IKEv2.
- Encryption
- Client - AES-128, AES-192, AES-256; Server - AES-128, AES-192, AES-256
- GRE
- GRE TUN (Layer 3)
- EoIP
- MikroTik RouterOS protocol based on GRE RFC 1701
- PPTP, L2TP
- Server and Client mode support for L2TPv2, L2TPv3
- Wireguard
- WireGuard tunnels and peers
- DMVPN
- Client mode operation, additional IP Security encryption
Network Functions+
- Routing
- Static
- Network protocols
- PPP, PPPoE, DHCP, TCP, UDP, ARP, IPv4, ICMP, HTTP, HTTPS, TLS, SSL
- Connection Monitoring
- Ping Reboot, Periodic Reboot, LCP and ICMP for link tracking
- Firewall
- Port forwarding, ZONE-based rules, pre-configured firewall rules, custom rules, NAT
- DHCP
- Static and dynamic IP address allocation
- Network Backup
- VRRP; Wired, Mobile or WiFi WAN. Supports automatic failover to an alternative connection (Automatic Failover)
- Network Services
- DHCP Server, NTP, DNS, SSH, SNMP
Security Features+
- Authentication
- Pre-shared key, digital certificates, X.509 certificates
- Attack prevention
- DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
- VLAN
- Port and tag based VLAN separation
- Access control
- WiFi access control (MAC address filter)
Monitoring & Management+
- UI
- WEB UI access via HTTP/HTTPS, CLI access via SSH, status, setup and configuration, firmware update, system log
- SSH
- SSH (v1, v2)
- SNMP
- SNMP (v2c, v3)
- Zabbix
- Zabbix Agent (requires manual package installation)
Wi-Fi+
- Wireless mode
- Access Point (AP), Station (STA), Station Bridge (STA WDS mode allows interface to be bridged)
- Wi-Fi security
- Details
- WPA/WPA2-Enterprise-PEAP, WPA/WPA2-PSK, AES-CCMP, TKIP, Auto Cipher modes
- Details
- SAE
- Wi-Fi users
- Up to 100 simultaneous connections
- SSID
- SSID stealth mode, access control list MAC address
